Linedef type 221

From SRB2 Wiki
Jump to navigation Jump to search

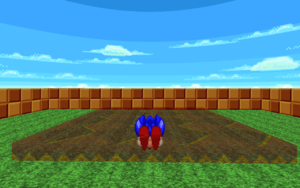

A player falls through an intangible, translucent FOF.

Linedef type 221, Intangible, Translucent, is a type of translucent floor over floor platform which is not solid. It can be passed through as though it doesn't exist. This type of FOF is good for creating intangible clouds or thin layers of mist which hug the ground.

Setup

The flats, floor height, and ceiling height of the FOF are determined by the flats, floor height, and ceiling height of the control sector, and the sidedefs of the FOF's walls are determined by the sidedef of the control linedef.

The alpha value of the FOF's translucency can be changed by setting the control linedef's front side upper texture to the number symbol (#), followed by a three-digit decimal number, from 000 to 255. #000 is completely invisible, whereas #255 is completely opaque. Note that in the Software renderer, there are actually only eleven different values: #000–#011, #012–#037, #038–#063, #064–#088, #089–#114, #115–#139, #140–#165, #166–#191, #192–#216, #217–#242, #243–#255, where #000-#011 is invisible, and #243–#255 is opaque. The advantage of using the completely opaque values is the ability to properly render flats which use transparent pixels. If no value is set in the front side upper texture, however, the default alpha value of #128 will be used.

If Flag [6] / Not Climbable is checked on the control linedef, the FOF will cast a shadow. In this situation, the light level of the control sector will determine the brightness of the shadow cast by the FOF. If the light level of the control sector is lower than that of the target sector, then it will cast a dark shadow. If the light level of the control sector is higher than that of the target sector, then the FOF will illuminate the area below it. If the light level of the control sector is equal to that of the target sector, then the FOF will not affect the light of the area below it.

Sample

Example file: ex_ld221_fofintangibletranslucent.wad (MAP01)
How to use
  • You may load this file into your favorite map editor, such as Zone Builder. Select MAP01 as the map to load.
  • You may also load this file in the game:
    1. Save ex_ld221_fofintangibletranslucent.wad into the addons folder of your SRB2 directory.
    2. Start SRB2, go to the Addons menu, and then select ex_ld221_fofintangibletranslucent.wad.
    3. Start the game in Single Player mode.
    4. Press the Console button (~), and type in the command MAP MAP01 to access the example map.
  • When you load this file in the game, it replaces Greenflower Zone Act 1.
