Linedef type 403

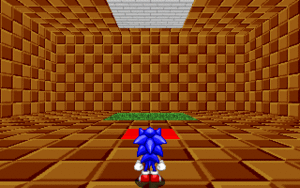

The player touches the red floor after which the floor rises.

Linedef type 403, Move Tagged Sector's Floor, is a type of linedef executor which, when triggered, starts moving every tagged sector's floor until it reaches a specified height.

Note that in UDMF, this FOF merges the parameters from linedef type 403 and 404.

Binary Setup

The new floor height of the target sector(s) is determined by the floor height of the control sector. The speed of the movement is indicated by the length of the linedef; one fracunit of length equals 0.125 fracunits per tic.

If Flag [6] / Not Climbable is checked, the floor flat will change after the move to that on the control sector's floor, just like what linedef type 400 does.

If Flag [1] / Block Enemies is checked, another linedef executor will run when the floor movement is finished. (If multiple sectors finish at different times, it goes by the lowest numbered sector, but you should probably try to avoid this scenario.) The tag of the new linedef executor to run is specified by the front texture X offsets. Note that Flag [6] / Not Climbable will not work if Flag [1] / Block Enemies is checked.

Sample (Binary)

Example file: ex_ld403_movefloor.wad (MAP01)

How to use
You may load this file into your favorite map editor, such as Zone Builder. Select `MAP01` as the map to load. You may also load this file in the game: Save `ex_ld403_movefloor.wad` into the `addons` folder of your SRB2 directory. Start SRB2, go to the Addons menu, and then select `ex_ld403_movefloor.wad`. Start the game in Single Player mode. Press the Console button (`~`), and type in the command `MAP MAP01` to access the example map. When you load this file in the game, it replaces Greenflower Zone Act 1.

UDMF Setup

The player touches the red floor after which the tagged sector moves

Argument 1 should be tagged to the target sector that will be moved. The new floor or ceiling height of the target sector(s) is determined by the height of the control sector. Argument 2 determines which planes will be affected by the movement. The speed of the movement is set by Argument 3, 1 speed equals 1 fracunits per tic.

If Argument 4 has a tag of another trigger in it's entry, another linedef executor will run when the floor movement is finished. (If multiple sectors finish at different times, it goes by the lowest numbered sector, but you should probably try to avoid this scenario.)

If Argument 5 / Set flats? is set to Yes, the target sector' flats will change after the move to that on the control sector's flats, determined by which planes that have been set to be moved by Argument 2.

Sample (UDMF)

Example file: ExUDMF_ld403_moveplanes.wad (MAP01)

How to use
You may load this file into your favorite UDMF map editor, such as Ultimate Zone Builder. Select `MAP01` as the map to load. You may also load this file in the game: Save `ExUDMF_ld403_moveplanes.wad` into the `addons` folder of your SRB2 directory. Start SRB2, go to the Addons menu, and then select `ExUDMF_ld403_moveplanes.wad`. Start the game in Single Player mode. Press the Console button (`~`), and type in the command `MAP MAP01` to access the example map. When you load this file in the game, it replaces Greenflower Zone Act 1.
