Linedef type 436

From SRB2 Wiki
Jump to navigation Jump to search

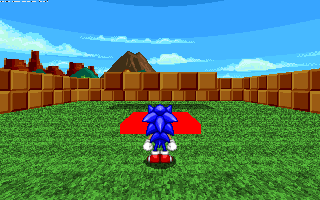

A player shattering an FOF by pressing a button.

Linedef type 436, Shatter FOF, is a type of linedef executor which, when triggered, automatically shatters a specified FOF. The specified FOF does not necessarily need to be a bustable block or shatter block; this will work with any type of FOF.

Setup

The tag given to this linedef is irrelevant. The tag of the target sector(s) of the FOF to shatter is determined by the linedef's front texture X offset. The tag of the FOF's control sector is determined by the linedef's front texture Y offset. Both the control and target sector must be specified for the effect to work. Note that tag 65535 cannot be used to shatter FOFs using every target or control sector tag.

Sample

Example file: ex_ld436_shatterfof.wad (MAP01)
How to use
  • You may load this file into your favorite map editor, such as Zone Builder. Select MAP01 as the map to load.
  • You may also load this file in the game:
    1. Save ex_ld436_shatterfof.wad into the addons folder of your SRB2 directory.
    2. Start SRB2, go to the Addons menu, and then select ex_ld436_shatterfof.wad.
    3. Start the game in Single Player mode.
    4. Press the Console button (~), and type in the command MAP MAP01 to access the example map.
  • When you load this file in the game, it replaces Greenflower Zone Act 1.
